Power: 20 – 50 Watts
Marking | Engraving | Coding | Traceability | Printing
Movable-Flexible Marking Machine
Product Description

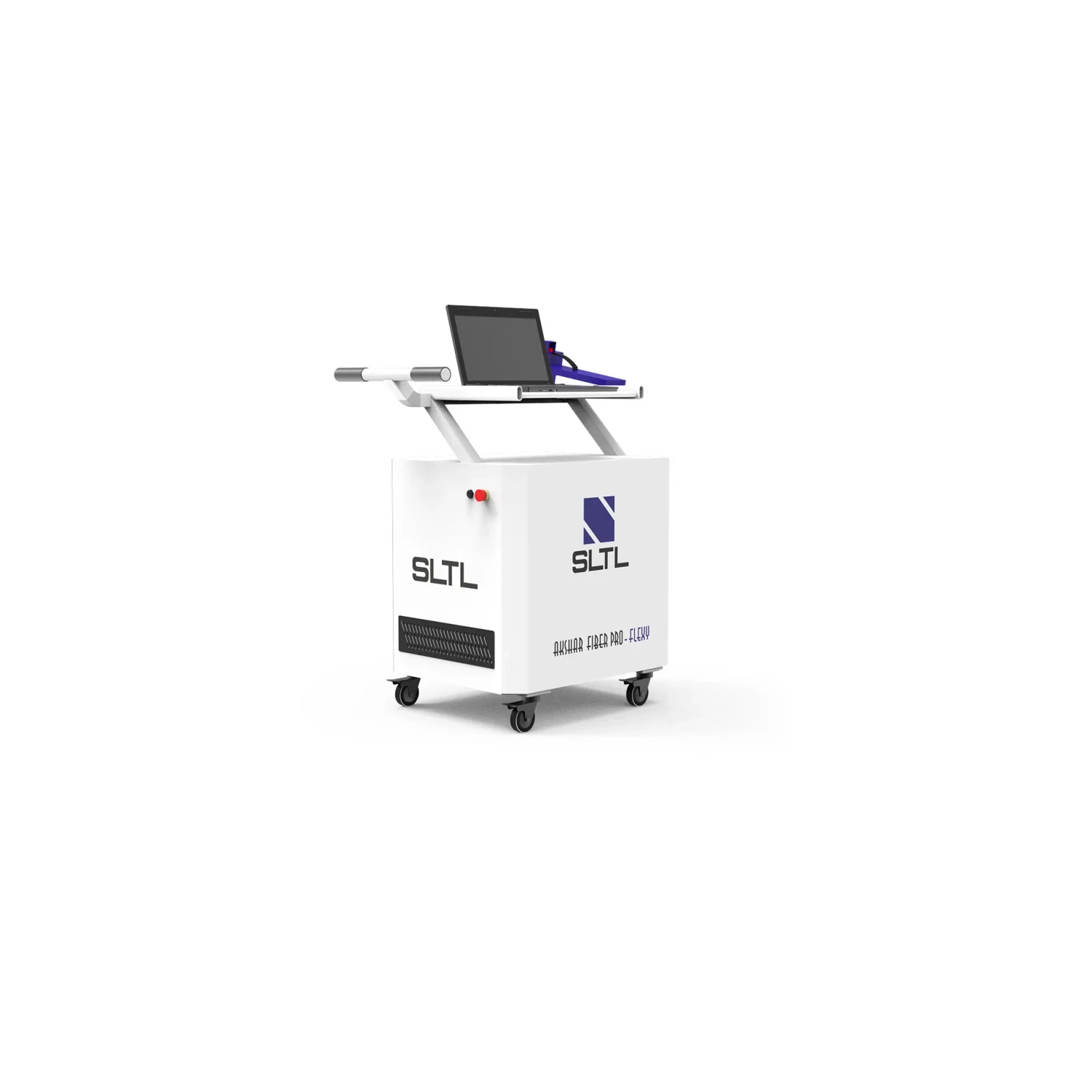

Flexy is an ultra-portable, handheld fiber laser marking machine model which is convenient for heavy and fixed components to imprint permanent marks.
Features
Technical Specification
| Unit | ||
|---|---|---|
| Laser | Mutimode Pump Diode Fiber Laser | |
| Laser Power | W | 20 | 30 | 50 |
| Mode of Operation | Pulsed | |
| Max. Peak Power | kW | >7.5 |
| Operating Temperature | Up to 40 °C | |
| Lens | F – Theta | |
| Wave Length | nm | 1060 ±10 |
| Marking Area | mm | 100 x 100 |
| Resolution | micron | 5 |
| Repeatability | micron | ≤ 80 |
| Hand Held Unit Weight | kg | 3 |
| Hand Held Unit Dimension (L*B*H) | mm | 430 x 90 x 100 |
| With Marking Focus Stand (L*B*H) | mm | 430 x 90 x 300 |
| Machine Weight | kg | 150 |
| Machine Dimension (L*B*H) | mm | 800 x 560 x 1200 |
1. Fume Extractor (Without Filter)
2. Fume Extractor (With Filter)
3. Foot Switch
4. Safety Switch
5. UPS / Isolation Transfer
Applications
Industrial Laser
