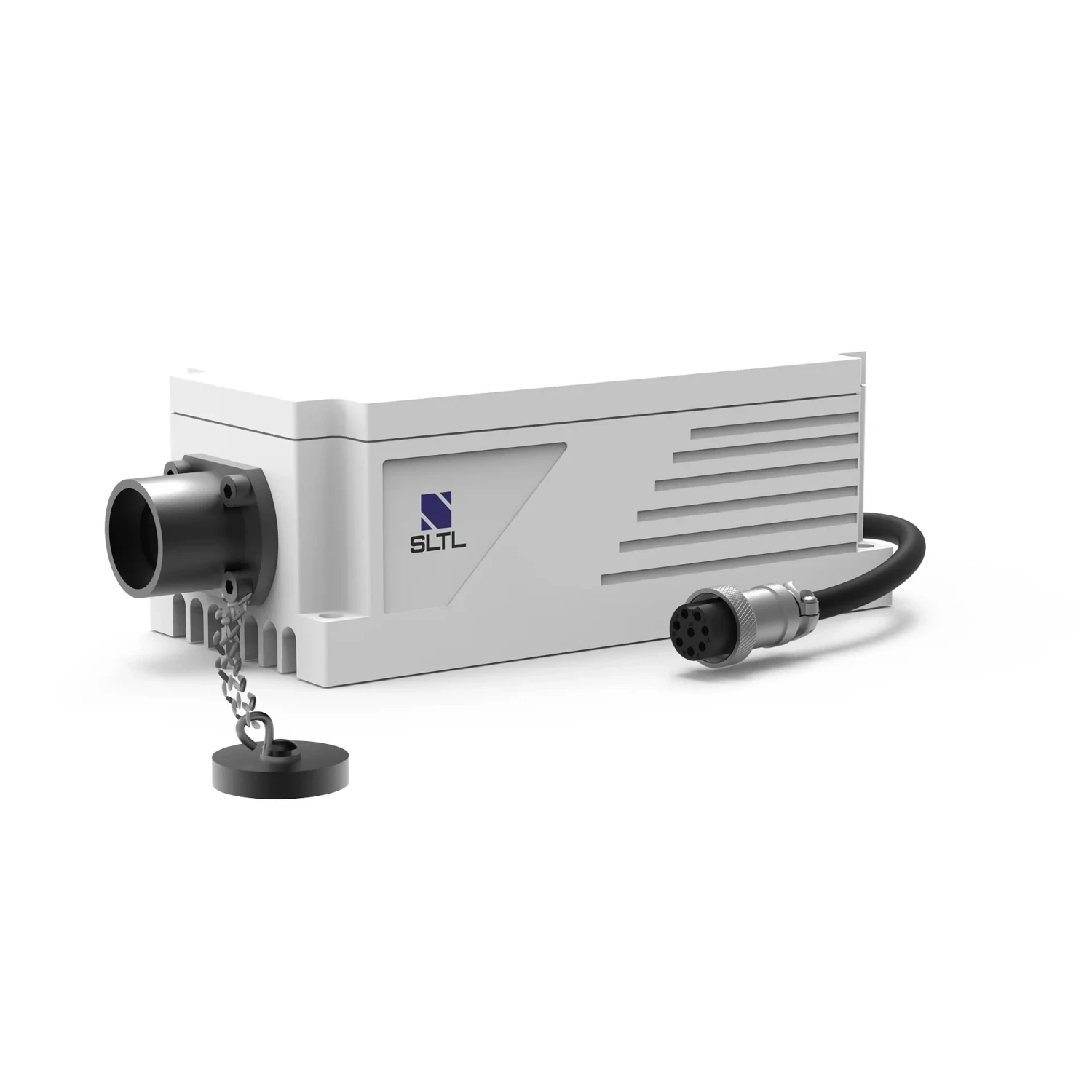

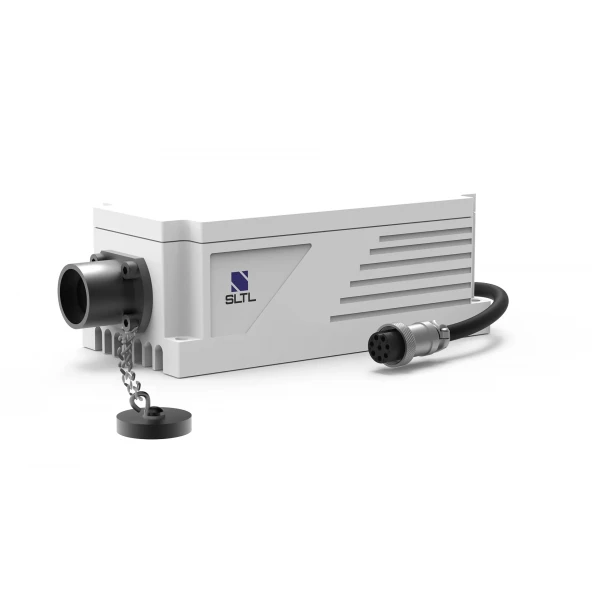

LD PUMPED Q-SWITCHED IR LASER

AvailabilityIn Stock
CategoryLaser Cutters
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

LD PUMPED Q-SWITCHED IR LASER Details

Power Stability (rms, 4 hrs) – <2%

Operating Temperature – 10 ~ 35° C

Expected Lifetime  – >10000 hrs

Product Description

The 1064 nm all-solid-state Q-switched laser delivers great performance and is widely utilised in R&D based industry. The laser diode has demonstrated reliability, as well as the capacity to operate at high energies and repetition rates with a single longitudinal mode pulse duration. It produces little noise and consumes very little power in a small laser housing when used in TEMoo mode.

Features

  • Key Features of this product

Technical Specification



ModelLD PUMPED Q-SWITCHED IR LASER
Operating ModePulsed – 1KHz
Central Wavelength1064 ± 1nm
Transverse ModeTEMoo
Power Stability (rms,Over 4 hrs) <2%
Beam diameter at Aperture1.5 mm
Beam Divergence angle<1.8 mrad
M² Factor< 1.2
Warm up time<10min
Pulse Energy ≥ 70 µjoule @ 1KHz
Pulse Duration10nsec
Rep Rate1 KHz
Operating Temperature10 ~ 35° C
Power Supply 220VAC, 50 Hz  SLTL-PSU
Aiming Laser for IR Beam5mw @ 650nm
Heat Sink mounted
Expected Lifetime>10000 hrs
Warranty1 year


Accessories:
IR detector Viewer Card Suitable for NIR Wavelength
Absorption  range: 700-1400 nm
Emission Range: Visible
Safety Goggles

Applications

Industrial Laser
