Features
• Utilizing an American-made laser system, a side pump laser is installed to ensure efficient diamond coring and slicing

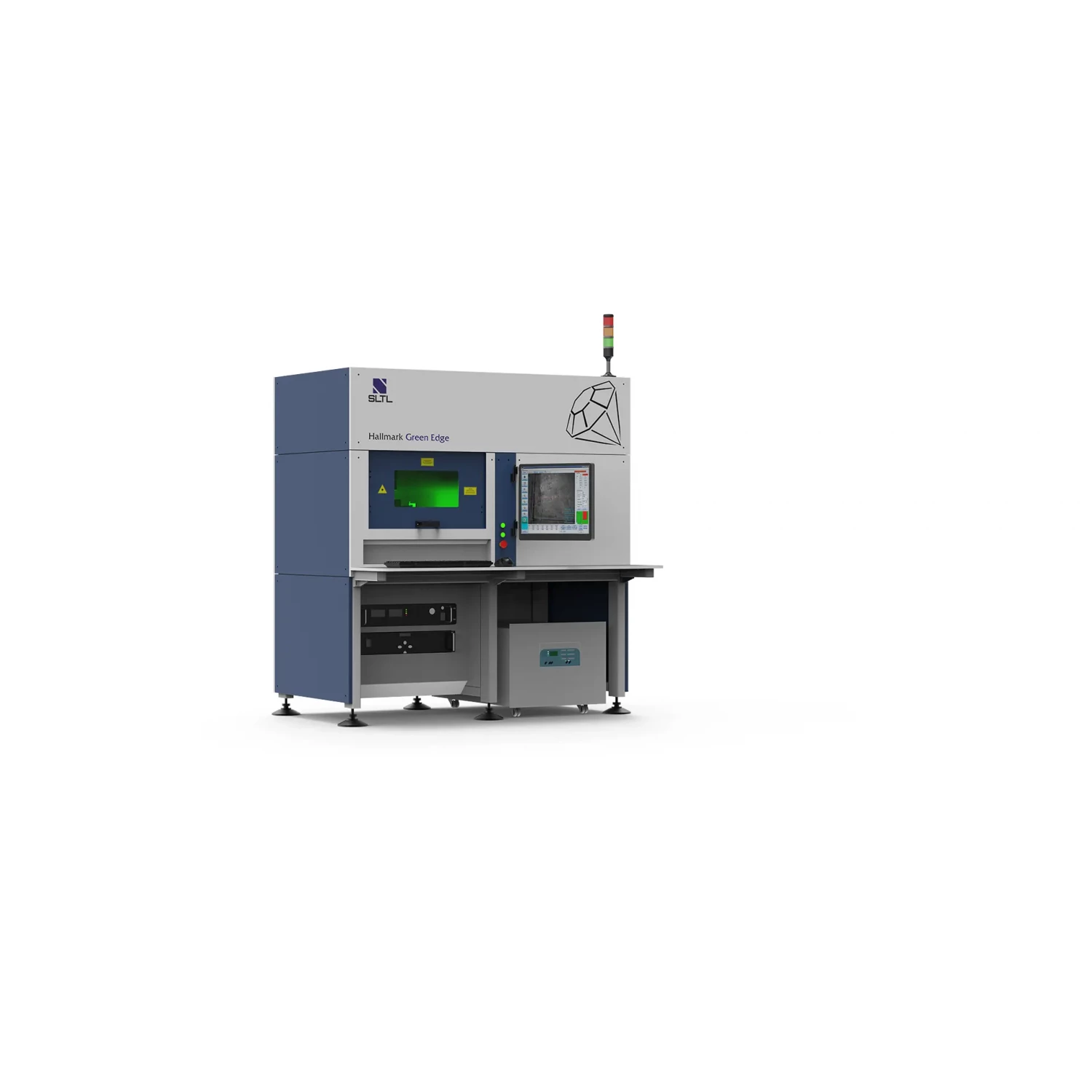

• The exceptionally sturdy construction and rigid framework enable the production of meticulously sliced CVD diamonds using the Hallmark Green Edge laser system.
• By implementing a magnetic axis system, the linear axis provides both flexibility in movement and accurate diamond sawing capabilities.
• Experience smooth slitting surfaces, sharp edges, and parallel kerfs with negligible heat impact zone.
• Achieve lightning-fast cutting speeds, exceptional mechanical precision, and ultra-thin kerf widths.
• Attain clean and deposit-free surfaces with minimal post-treatment, eliminating the need for focus control.
• Power & frequency control interface in software.
• Precise laser sawing operation due to stable beam delivery.
• Sawing of tension stones is possible
• Peak power control with Real Time Laser System (RTLS).
Technical Specification
Parameter | Value | |
---|---|---|
Wavelength | nm | 532 |
Beam Mode | TEM00 | |
Output Power | watt | ≤ 24 W @ 9 kHz |
CNC Table Size | mm | 170 x 170 |
Resolution | micron | ±1 |
Repeatability | micron | ±3 |
Accuracy | micron | ±2 |
Drive Type | AC SERVO | |
Z Axis Travel | mm | 50 |
Power Supply | 1 Phase, 15 Amp | |
Power Consumption | kW | 2.2 |
Operating Environment | ||
Temperature / Humidity | °C/RH | 20 – 30 / < 60% |
Coolant Requirement | lt/hr | 4 – 6 |
Coolant Storage | litre | 10 liters |
Dimensions | mm | 1360 x 730 x 1390 |
Computer System | Intel Core i3 based CPU or Higher |
*Technical specifications are subject to change without prior notice.

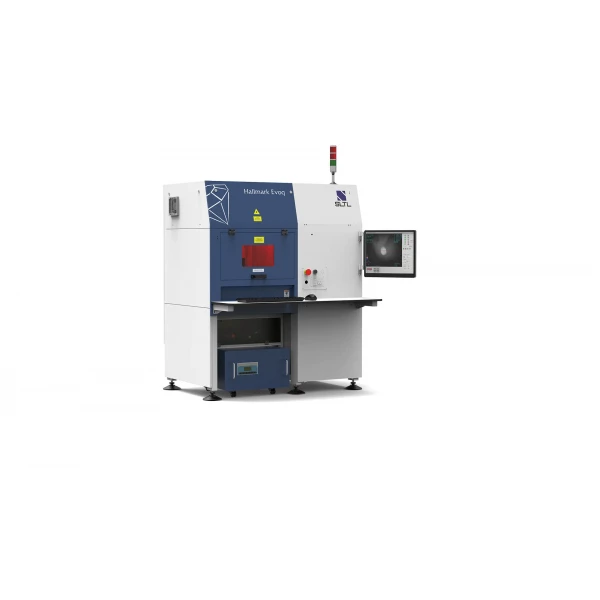

Features • BREAK FREE CORING :Utilizing in-house software, the machine effectively guides the la... Continue
