– Save Space >80 sq m
– Save Time
– Increase Safety
– Manual & Automatic
Product Description

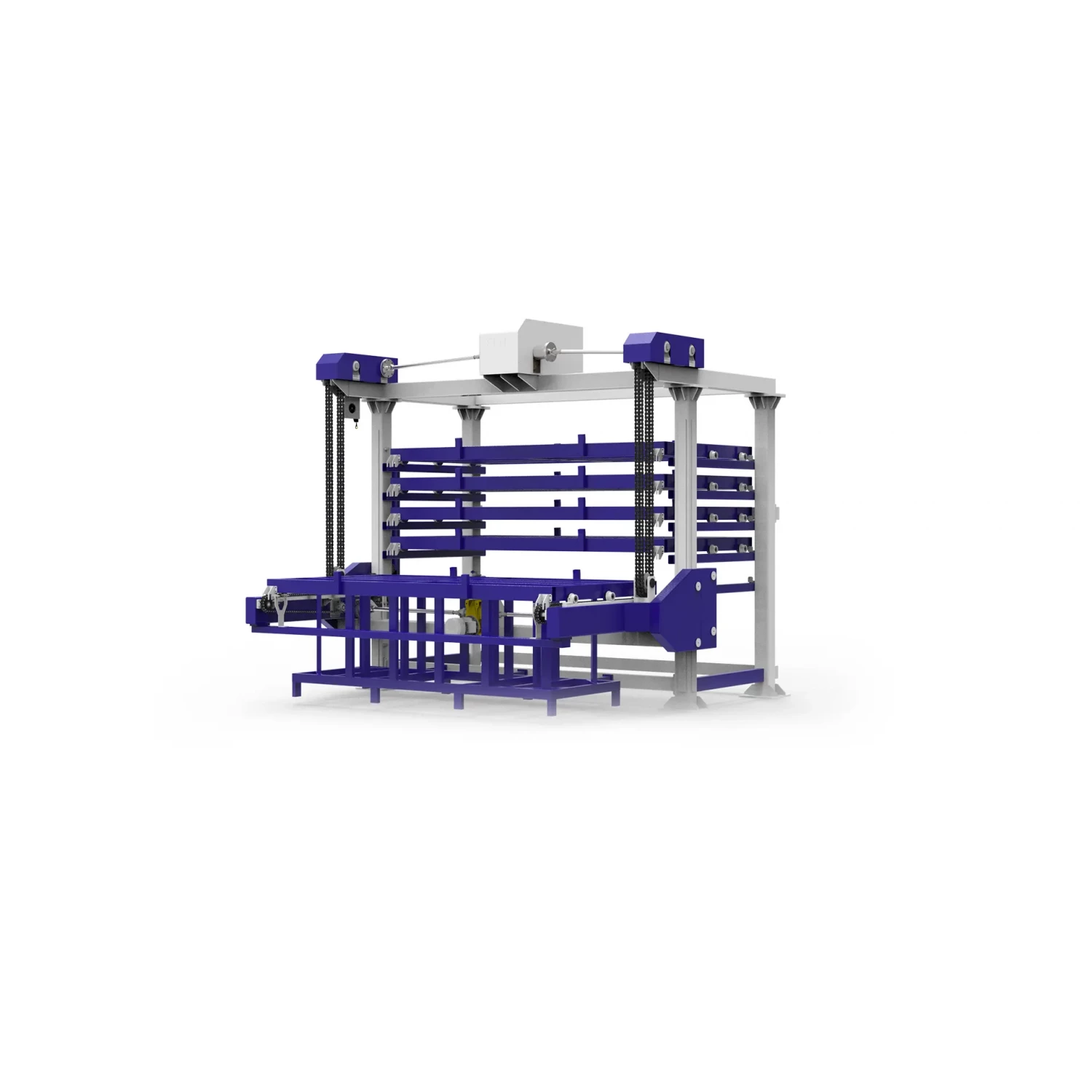

Opti-Store is an automated sheet metal storage system developed to safely exploit high rooftops while carrying out a goods-to-operator in work process. Workplace Safety, Efficient Material Storage and Flow, and Storage Footprint Reduction are all benefits of the optic sheet stacker.
Features
Technical Specification
Manual | ||
---|---|---|
No of pallet | Nos | 5 |
Pallet size | mm | 3100 x 1598 |
Max weight carrying capacity per pallet | Kgs | 2000 |
Sheet size per pallet | mm | 3000 x 1500/2500 x 1250 |
Max height per pallet | mm | 100 |
System height | mm | 3100 |
Automatic | ||
---|---|---|
No of pallet | Nos | 10 |
Pallet size | mm | 3100 x 1598 |
Linear Lifting speed | mpm | 5.5 |
Max weight carrying capacity per pallet | Kgs | 3000 |
Sheet size per pallet | mm | 3000 x 1500/2500 x 1250 |
Max height per pallet | mm | 125 |
System height | mm | 4400 |
Automatic | ||
---|---|---|
No of pallet | Nos | 15 |
Pallet size | mm | 3100 x 1598 |
Linear Lifting speed | mpm | 3- 5 |
Max weight carrying capacity per pallet | Kgs | 3000 |
Sheet size per pallet | mm | 3000 x 1500/2500 x 1250 |
Max height per pallet | mm | 125 |
System height | mm | 5600 |
Automatic | ||
---|---|---|
No of pallet | Nos | 20 |
Pallet size | mm | 3100 x 1598 |
Linear Lifting speed | mpm | 3- 5 |
Max weight carrying capacity per pallet | Kgs | 3000 |
Sheet size per pallet | mm | 3000 x 1500/2500 x 1250 |
Max height per pallet | mm | 125 |
System height | mm | 6100 |
Applications
