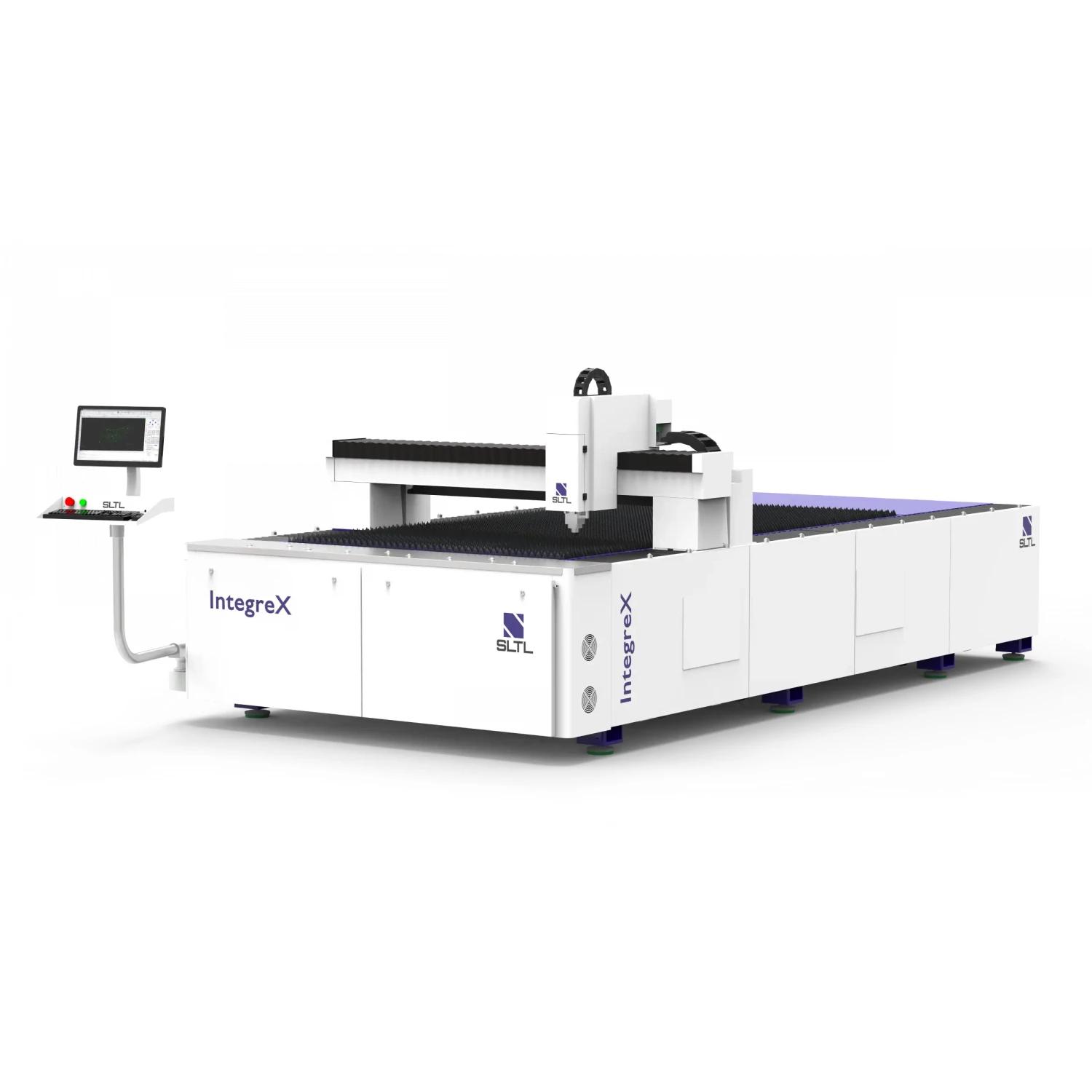

INTEGREX
INTEGREX Details
Power: 1 kW – 3 kW
Material: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Others.
Product Description
Features
- Common & Fly Cut
- Highly Intelligent Nesting
- Auto Sheet Orientation
- User Friendly Software
- Cost Efficient, Time Saver, Compact
- Effortless Loading/Unloading Mechanism
- Zero Fillet Mode
Specification
| Unit | Working Range 2D | Working Range 2D | ||
|---|---|---|---|---|
| 3015 | 4515 | |||
| Maximum Working Range | X Axis | mm | 1550 | 1550 |
| Y Axis | mm | 3100 | 4600 | |
| Z Axis | mm | 100 | 100 | |
| Maximum Workpiece Weight | kgs | 750 | 1100 | |
| Positioning Precision | mm/meter | ±0.05 | ±0.05 | |
| Repeatability | mm/meter | ±0.02 | ±0.02 |
Thickness & Power Consumption
| Laser Power | 1 kW | 1.5 kW | 2 kW | 3 kW |
|---|---|---|---|---|
| Mild Steel (MS) | 10 (3/8″) | 12 (1/2″) | 16 (5/8″) | 20 (3/4″) |
| Stainless Steel (SS) (O2) | 6 (1/4″) | 8 (5/16″) | 10 (3/18″) | 10 (3/8″) |
| Stainless Steel (SS) (N2) | 3 (1/8″) | 4 (5/32″) | 6 (1/4″) | 8 (5/16″) |
| Aluminum (AL) | 2** | 3 (1/8″) | 5 (3/16″) | 8 (5/16″) |
| Brass (Br) | 3** | 3 (1/8″) | 5 (3/16″) | 6 (7/32″) |
| Copper (Cu) | 2** | 2 (1/16″) | 3 (1/8″) | 5 (3/16″) |
| Galvanized Iron (GI)# | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8″)* |
| Power Consumption** | 10 kW | 12 kW | 17 kW | 20 kW |
*The quality of the cut depends upon the attributes of the metal, its surface properties and the conditions in which cutting operations are done.
Metals with high thickness tend to have striation at lower edges.
** The power consumption indicated in the table is measured by the machine’s peak performance. It includes the connected load of the laser source, controller, fume extractor and chiller.
***Maximum thickness of full-size sheet is limited by weight carrying capacity of respective variant.
# Galvanized Iron (GI) only comes up to 3mm thickness in market.
Accessories:
Fume Suction
Class 1 Enclosure
Pallet Changer
Tube Cutting Mechanism
Filtered Fume Extractor
Auto Focus Cutting Head
Light Curtain
Applications
- Sheet Metal Fabrication
- Metal Signage Industry
- Marvelous edge for any Customized Cutting
- Gives perfect shape for Utensils
