Power: Upto 2 kW
Material: Mild Steel, Stainless steel, Galvanized Iron, Others.
Get a Quote

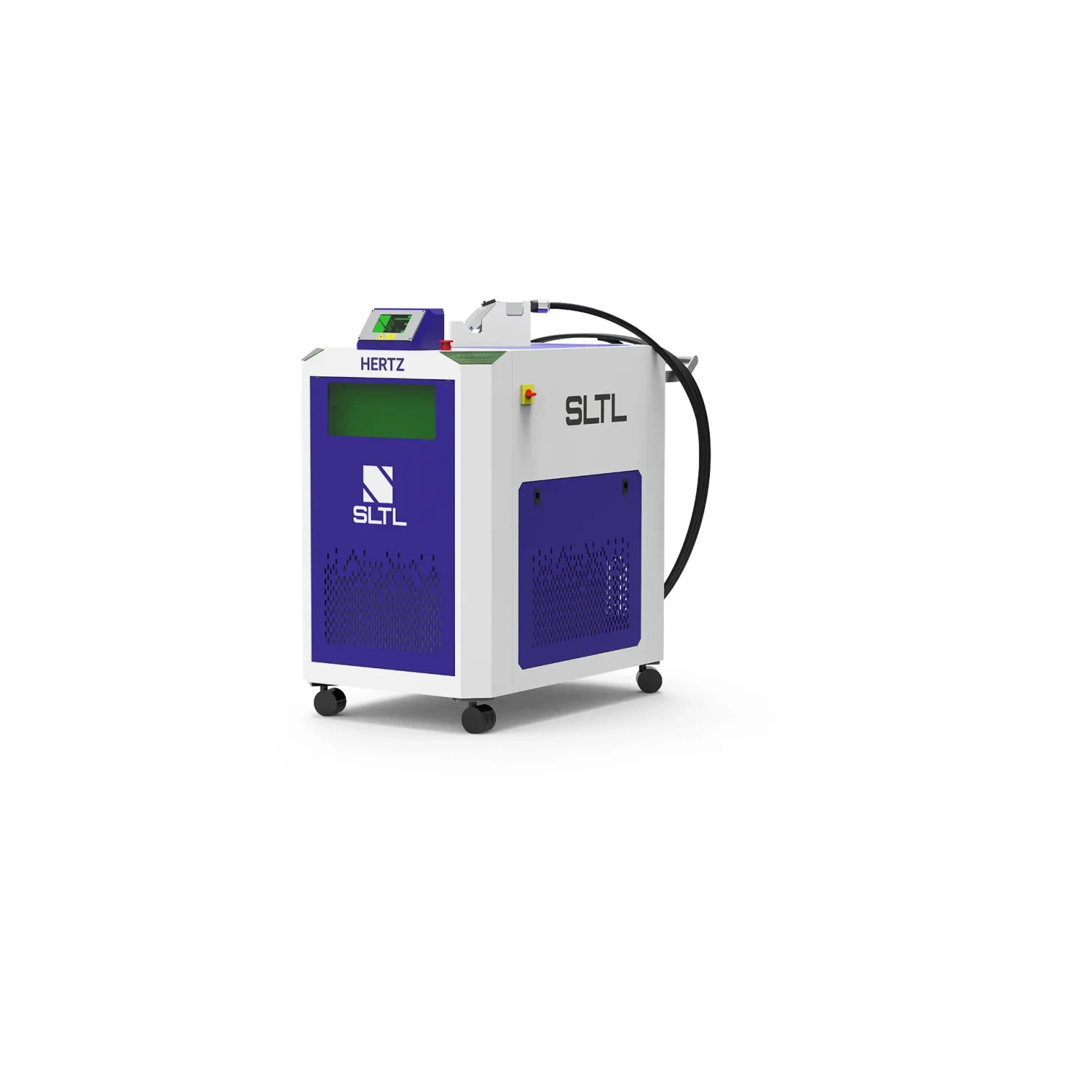

Laser Welding Machine - Hertz
The supersonic Laser welding machine is designed to flexibly weld the diversified shapes and sizes of components with the highest strength and seamless joints.
Features
Technical Specification
| Specification | Units | |||
|---|---|---|---|---|
| Power | Watts | 1500 | 2000 | |
| Wave length | nm | 1080 ± 10 | 1080 ± 10 | |
| Mode of operation | Continuos Wave (CW) | Continuos Wave (CW) | ||
| Output Power Tunability | % | 10 – 100 | 10 – 100 | |
| Modulation Frequency | 0 – 5000 Hz | 0 – 5000 Hz | ||
| Power supply | 230 ± 5% VAC, 3 Ø, 50/60 Hz | 230 ± 5% VAC, 3 Ø, 50/60 Hz | ||
| Overall Size (L × B × H) (Approx) | mm | 1300 × 685 × 1200 | 1300 × 685 × 1200 | |
| Weight (Approx) | kg | 150 | 150 | |
| Maximum Power Consumption | kW | 5.5 | 5.5 | |
| Position indication | Red Light | Red Light | ||
| Welding Nozzle Wire Length | mtr | 10 mtr | 10 mtr | |
| Operation Temperature | °C | 10 to 50 | 10 to 50 | |
| *Welding Thickness | mm | Mild Steel: 4 | Stainless Steel: 4 | Aluminum: 2 | Aluminum Alloy: 2 | Galvanized Iron: 2 | ||
| Specification | Units | 1 |
|---|---|---|
| Power | Watts | 2000 |
| Wave length | nm | 1070 ± 10 |
| Mode of operation | Continuos / modulation | |
| Output Power Tunability | % | 10 – 100 |
| Modulation Frequency | 0 – 5000 Hz | |
| Power supply | 230 ± 5% VAC, 3 Ø, 50/60 Hz | |
| Overall Size (L × B × H) (Approx) | mm | 650 × 300 × 621 |
| Weight (Approx) | kg | 70 |
| Maximum Power Consumption | kW | 6.5 |
| Position indication | Red Light | |
| Welding Nozzle Wire Length | mtr | 10 |
| Operation Temperature | °C | 10 to 50 |
| *Welding Thickness | mm | Mild Steel: 4 | Stainless Steel: 4 | Aluminum: 2 | Aluminum Alloy: 2 | Galvanized Iron: 2 |
*The table above indicastes a thickness with a maximum penetration capacity of 2000 Watts
