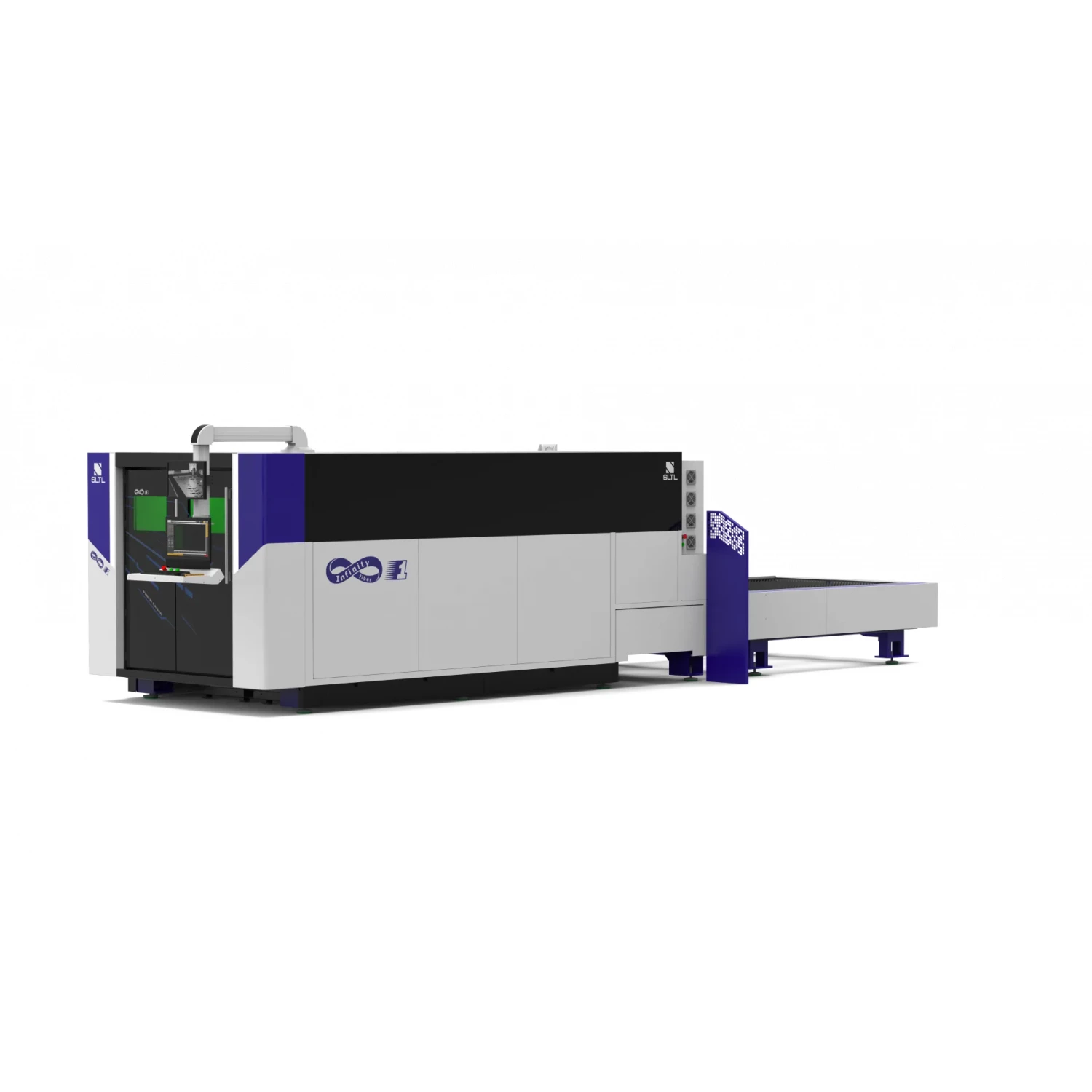

INFINITY F1
INFINITY F1 Details
Power: 3 kW – 30 kW
Material: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Coated Sheet, Others
Product Description
Metal cuttings are more flexible, swift material change and magnificent response within 20nanoseconds which is highly intuitive software for all types of industries.
Features
- Auto Sheet Orientation
- Anti-Collision Mechanism
- Fly Cut
- Dynamic Fume Extractor Mechanism
- Online clearance control
| Unit | Working Range 2D | |||||||
|---|---|---|---|---|---|---|---|---|
| 1515 | 3015 | 4020 | 6520 | 6525 | 8025 | |||
| Maximum Working Range | X Axis | mm | 1525 (60.03″) | 1525 (60.03″) | 2100 (82.6*) | 2100 (82.6″) | 2550 (100.3″) | 2550 (100.3″) |
| Y Axis | mm | 1525 (60.03″) | 3100 (122*) | 4100 (161.4″) | 6600 (259.8*) | 6600 (259.8″) | 8050 (316.9″) | |
| Z Axis | mm | 150 (5.9″) | 299 (11.8″) | 300 (11.8″) | 301 (11.8″) | 302 (11.8″) | 450 (17.7″) | |
| Z Axis (UHP) | mm | 150 (5.9″) | 300 (11.8″) | 300 (11.8″) | 301 (11.8″) | 450 (17.7″) | 451 (17.7″) | |
| Maximum Workpiece Weight*** | kgs | 220 | 900 | 1650 | 2650 | 3100 | 7800 | |
| (UHP) | kgs | 220 | 1100 | 3150 | 5100 | 6350 | 7800 | |
| Positioning Precision | mm/m | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | |
| Repeatability | mm/m | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |
| Maximum Rapid | Simultaneous | m/min | 120 | 170 | 125 | 125 | 125 | 125 |
| Maximum Acceleration | m/s2 | 20 | 20 | 15 | 15 | 15 | 15 | |
Thickness & Power Consumption
| Laser Power | 3 kW | 4 kW | 6 kW | 8 kW | 10 kW | 12 kW | 15 kW | 20 kW | 30 kW |
|---|---|---|---|---|---|---|---|---|---|
| Cutting Thickness on Metals mm (inch) | |||||||||
| Mild Steel (MS) (02) | 20 (3/4″) | 22 (7/8″) | 25 (1″)* | 28 (9/8″)* | 30 (19/16″)* | 40 (25/16″)* | 45 (7/4″)* | 50 (31/16″)* | 60 (19/8″)* |
| Mild Steel (MS) (N2 / Air) | 6 (1/4″) | 6 (1/4″) | 8 (5/16″) | 10 (3/8″) | 12 (1/2″) | 12 (1/2″) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* |
| Stainless Steel (SS) (02) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″)* | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) |
| Stainless Steel (SS) (N2 / Air) | 8 (5/16″) | 10 (3/8″) | 16 (5/8″)* | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* | 40 (25/16″)* |
| Aluminum (AL) (N2) | 8 (5/16″) | 10 (3/8″) | 16 (5/8″)* | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* | 40 (25/16″)* |
| Brass (Br) (N2) | 6 (1/4″) | 8 (5/16″) | 12 (1/2″) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* |
| Copper (Cu) (02) | 5 (3/16″) | 6 (1/4″) | 8 (5/16″) | 10 (3/8″) | 12 (1/2″) | 16 (5/8″) | 18 (11/16″) | 20 (13/16″) | 22 (7/8″) |
| Galvanized Iron (GI) (N2 / Air)# | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) |
| Power Consumption** | 20 kW | 24 kW | 32 kW | 40 kW | 48 kW | 56kW | 68kW | 85kW | 120kW |
| Type | Working Area (2D) | |||||
|---|---|---|---|---|---|---|
| 1515 | 3015 | 4020 | 6520 | 6525 | 8025 | |
| Machine Width | 2820 | 2280 | 3400 | 3300 | 3900 | 3900 |
| Machine Height | 2300 | 2190 | 2200 | 2200 | 2200 | 2350 |
| CNC Gantry | 4700 | 6000 | 6700 | 9300 | 9300 | 10900 |
| Dual Pallet | NA | 3300 | 4400 | 6900 | 6900 | 8500 |
| Total Machine Length | 6700 | 9300 | 11100 | 16200 | 16200 | 19400 |
| Space Required for Accessories | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Total Machine Width with Accessories | 3300 | 4280 | 5900 | 5900 | 6500 | 6500 |
| Width of Operating Panel | 600 | 600 | 600 | 600 | 600 | 600 |
| Length of Operating Panel | 430 | 430 | 430 | 430 | 430 | 430 |
* The quality of the cut depends upon the attributes of metal, its surface properties and the conditions in which cutting operations are done. Metals with high thickness tend to have striation at lower edges.
** The power consumption indicated in the table is measured on the machine’s peak performance. It includes the connected load of the laser source, controller, fume extractor and chiller.
***Maximum thickness of full-size sheet is limited by weight capacity of respective variant.
#Galvanized Iron (GI) only comes up to 3mm thickness in market.
