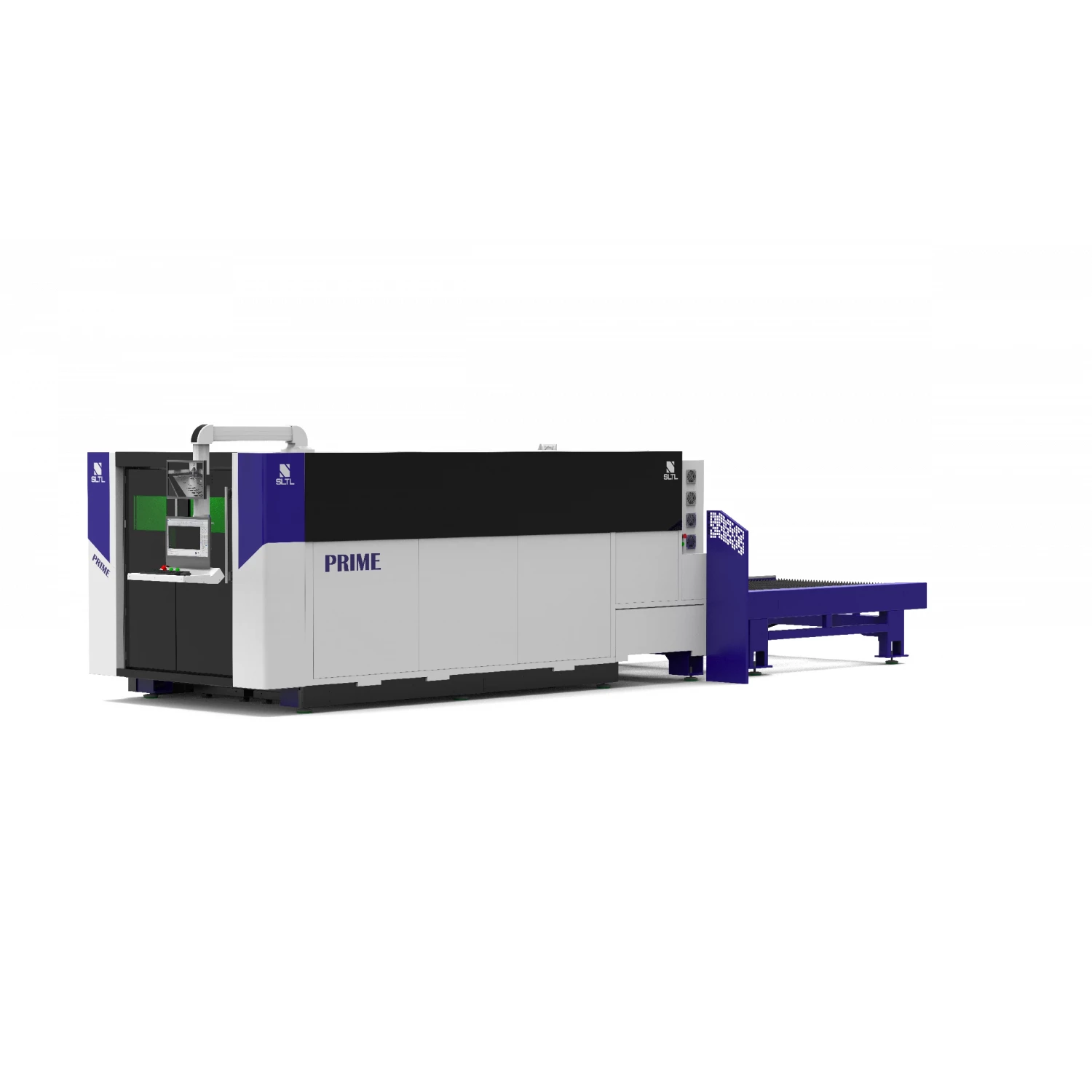

PRIME
PRIME Details
Power: 1 kW – 6 kW
Material: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Coated Sheet, Others.
Product Description
Prime laser cutting machine is the industry standard, with excellent cutting quality and productivity.
Features
- Common & Fly Cut
- Auto Sheet Orientation
- User Friendly Software
- Anti-Collision Mechanism
- Enhanced Productivity
- Dynamic Motorized Lens
Specification
Working Range 2D
| Unit | 1515 | 3015 | 4020 | 6520 | 6525 | ||
|---|---|---|---|---|---|---|---|
| Maximum Working Range | X Axis | mm (inch) | 1525 (60″) | 1525 (60″) | 2100 (82.6″) | 2100 (82.6″) | 2550 (100.3″) |
| Maximum Working Range | Y Axis | mm (inch) | 1525 (60″) | 3100 (122″) | 4100 (161.4″) | 6600 (259.8″) | 6600 (259.8″) |
| Maximum Working Range | Z Axis | mm (inch) | 150 (5.9″) | 300 (11.8″) | 300 (11.8″) | 300 (11.8″) | 300 (11.8″) |
| Maximum Workpiece Weight | kgs | 220 | 900 | 1650 | 2650 | 3100 | |
| Positioning Precision | mm/meter | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | |
| Repeatability | mm/meter | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |
| Maximum Rapid | Simultaneous | m/min | 120 | 120 | 120 | 120 | 120 |
| Maximum Acceleration | m/s2 | 15 | 15 | 15 | 15 | 15 |
Thickness & Power Consumption
| Laser Power | 1 kW | 1.5 kW | 2 kW | 3 kW | 4 kW | 6 kW |
|---|---|---|---|---|---|---|
| Mild Steel (MS) (O2) | 10 (3/8”) | 12 (1/2”) | 16 (5/8”) | 20 (3/4”) | 22 (7/8”) | 25 (1”)* |
| Mild Steel (MS) (N2 / Air) | 3 (1/8”) | 4 (3/16”) | 5 (3/16”) | 6 (1/4”) | 6 (1/4”) | 8 (5/16”) |
| Stainless Steel (SS) (O2) | 6 (1/4”) | 6 (1/4”) | 10 (3/8”) | 10 (3/8”) | 10 (3/8”) | 10 (3/8”) |
| Stainless Steel (SS) (N2) | 3 (1/8”) | 4 (3/16”) | 5 (3/16”) | 8 (5/16”) | 10 (3/8”) | 16 (5/8”)* |
| Aluminum (Al) (N2) | 2 (1/16”)** | 3 (1/8”) | 5 (3/16”) | 8 (5/16”) | 10 (3/8”) | 16 (5/8”)* |
| Brass (Br) (N2) | 3 (1/8″)** | 3 (1/8”) | 5 (3/16”) | 6 (1/4”) | 8 (5/16”) | 12 (1/2”) |
| Copper (Cu) (O2) | 2 (1/16”)** | 2 (1/16”) | 3 (1/8”) | 5 (3/16”) | 6 (1/4”) | 8 (5/16”) |
| Galvanized Iron (Gl) (N2 / Air) # | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8”) | 3 (1/8”) | 3 (1/8”) |
| Power Consumption*** | 10 kW | 12 kW | 17 kW | 20 kW | 24 kW | 32 kW |
* The quality of the cut depends upon the attributes of metal, its surface properties and the conditions in which cutting operations is done. Metals with high thickness tend to have striation at lower edges
** Not advisable to process, requires special grade material
*** The power consumption indicated in the table is measured on the machine’s peak performance. It includes the connected load of laser source, controller, fume extractor and chiller.
# Galvanized Iron (GI) only comes up to 3mm thickness in market
Machine Dimensions
| Dimension (mm) | |||||
|---|---|---|---|---|---|
| Type | 1515 | 3015 | 4020 | 6520 | 6525 |
| Machine Width | 2280 | 2280 | 3400 | 3300 | 3900 |
| Machine Height | 2200 | 2190 | 2200 | 2200 | 2200 |
| CNC Gantry | 4700 | 6000 | 6700 | 9300 | 9300 |
| Dual Pallet | NA | 3300 | 4400 | 6900 | 6900 |
| Total Machine Length | 6800 | 9300 | 11100 | 16200 | 16200 |
| Space Required for Accessories | 2000 | 2000 | 2000 | 2000 | 2000 |
| Total Machine Width with Accessories | 2300 | 4280 | 5900 | 5900 | 6500 |
| Width of Operating Panel | 600 | 600 | 600 | 600 | 600 |
| Length of Operating Panel | 430 | 430 | 430 | 430 | 430 |
Accessories:
- Chiller
- Fume Suction
- Class 1 Enclosure
- Pallet Changer
- Tube Cutting Mechanism
- Filtered Fume Extractor
- Dynamic Fume Suction
- Auto Focus Cutting Head
- Light Curtain
* All the above Figures are in mm (Millimeter).
* Sahajanand Laser Technology Ltd. reserves the right to make changes without any prior intimation or notice.
Applications
- Gives perfect shape for Utensils
- Marvelous edge for any Customized Cutting
- Clean Room Facility Manufacturing
- Electric Panel Manufacturing
- Quality finishing for Metal Cutting
