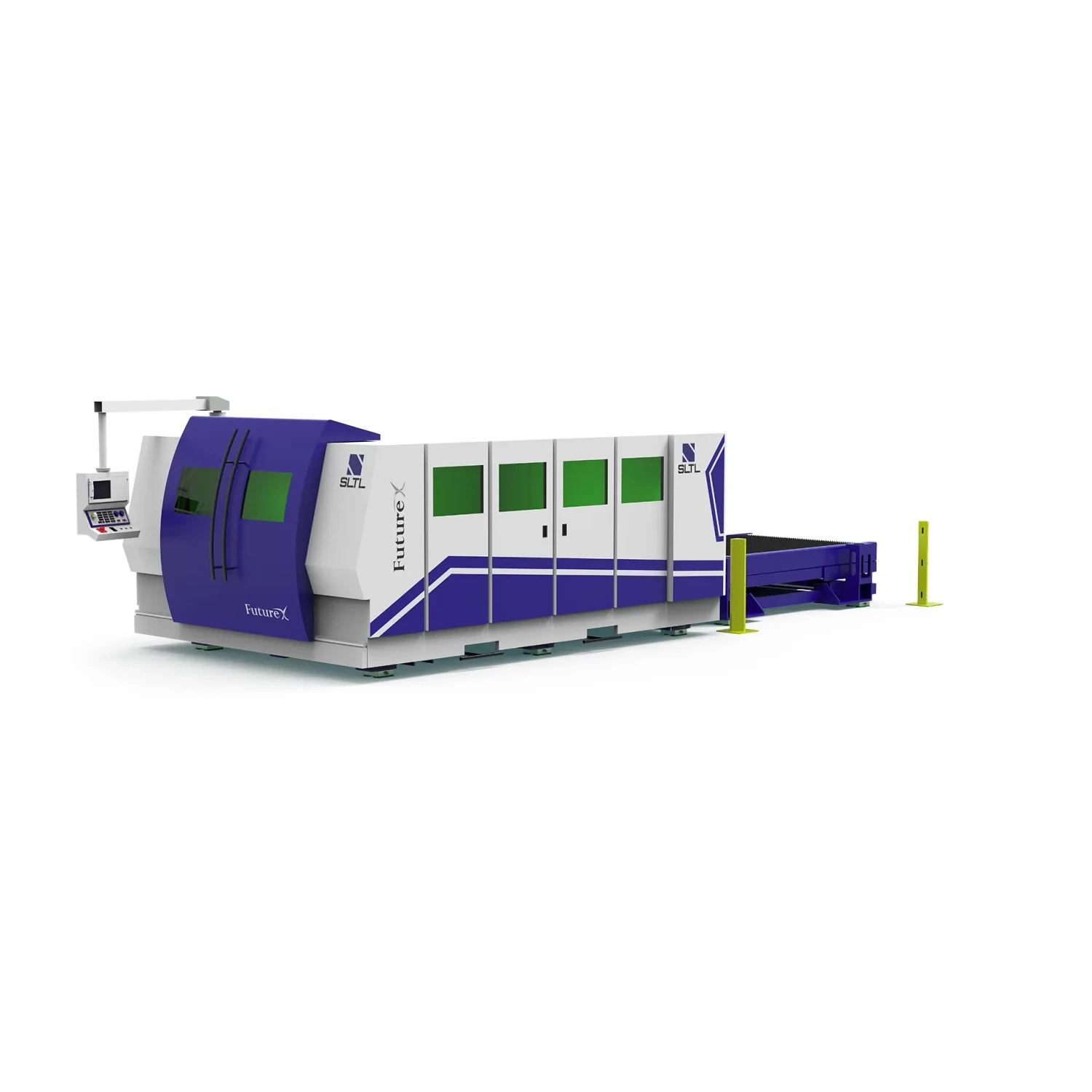

FUTURE X
FUTURE X Details
Power: 6 kW – 30 kW
Material: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Coated Sheet, Others.
Newest fiber laser cutting with high precision and a high factor X, coupled with a linear motor drive and rigid gantry structure that allows for 3G accelerations.
Features
- Linear Motor Drive Movement
- Dynamic Motorized Lens
- Focus on Safety
- Dynamic Edge Control
- Profound Productivity
- Auto Sheet Orientation
- Process Difficult Sections Precisely
- Anti-Collision Mechanism
- Fly Cut
- Cooling Point
Technical Specification
| Laser Power (kW) | 6 | 8 | 10 | 12 | 15 | 20 | 30 |
|---|---|---|---|---|---|---|---|
| Mild Steel (MS) (O2) | 25 (1″)* | 28 (9/8″)* | 30 (19/16″)* | 40 (25/16″)* | 45 (7/4″)* | 50 (31/16″)* | 60 (19/8″)* |
| Mild Steel (MS) (N2 / Air) | 8 (5/16″) | 10 (3/8″) | 12 (1/2″) | 12 (1/2″) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* |
| Stainless Steel (SS) (O2) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″)* | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) |
| Stainless Steel (SS) (N2 / Air) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* | 40 (25/16″)* |
| Aluminum (Al) (N2) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* | 40 (25/16″)* |
| Brass (Br) (N2) | 12 (1/2″) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* |
| Copper (Cu) (O2) | 8 (5/16″) | 10 (3/8″) | 12 (1/2″) | 16 (5/8″) | 18 (11/16″) | 20 (13/16″) | 22 (7/8″) |
| Galvanized Iron (GI) (N2 / Air) # | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) |
| Power Consumption** | 32 kW | 40 kW | 48 kW | 56 kW | 68 kW | 85 kW | 120 kW |
| Working Area (X Y Z) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) |
| Maximum Speed (X Y) | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* |
| Position Accuracy | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) |
| Repeatability | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) |
| Work Piece Weight | 900 kg | 900 kg | 900 kg | 900 kg | 900 kg | 900 kg | 900 kg |
Applications
- Quality finishing for Metal Cutting
- Standard Cutting For Medical Instruments
- Marvelous edge for any Customized Cutting
Related Products

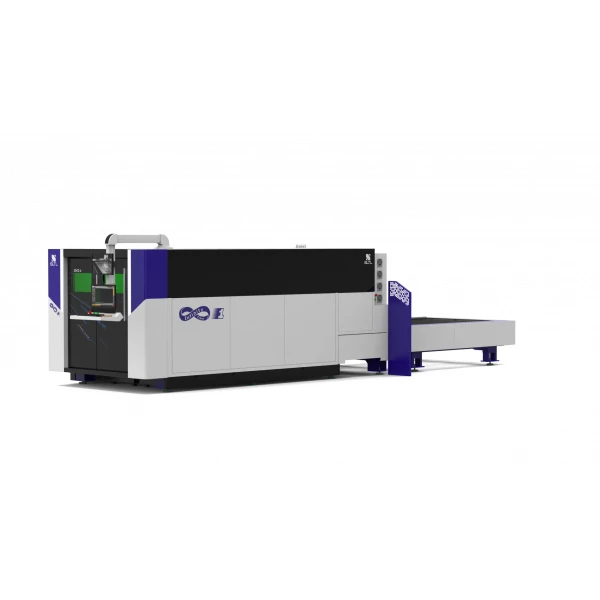

INFINITY F1
Power: 3 kW – 30 kWMaterial: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Coated Sheet, ... Continue
X5 Laser Cutting Machine
Power: 1 kW – 4 kWMaterial: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Coated Sheet, O... Continue

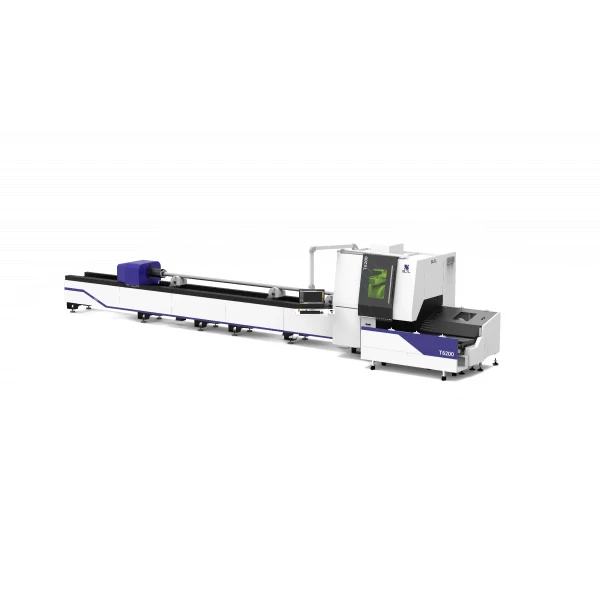

TUBE CUTTING MACHINE
Power: 1 kW – 4 kWMaterial: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Others.Produc... Continue

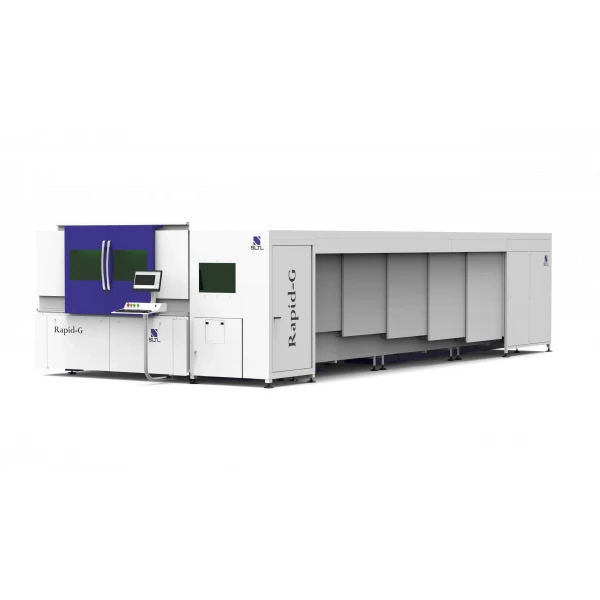

RAPID-G 2D+TUBE CUTTING
