Power: 20 – 50 Watts
High Speed Precise Operation
Product Description
The machine features the latest technology support so as to provide lasting work support by SLF for new generation High Power Laser Cutting machines, with high-precision solar cell metal cutting.
Features
Technical Specification

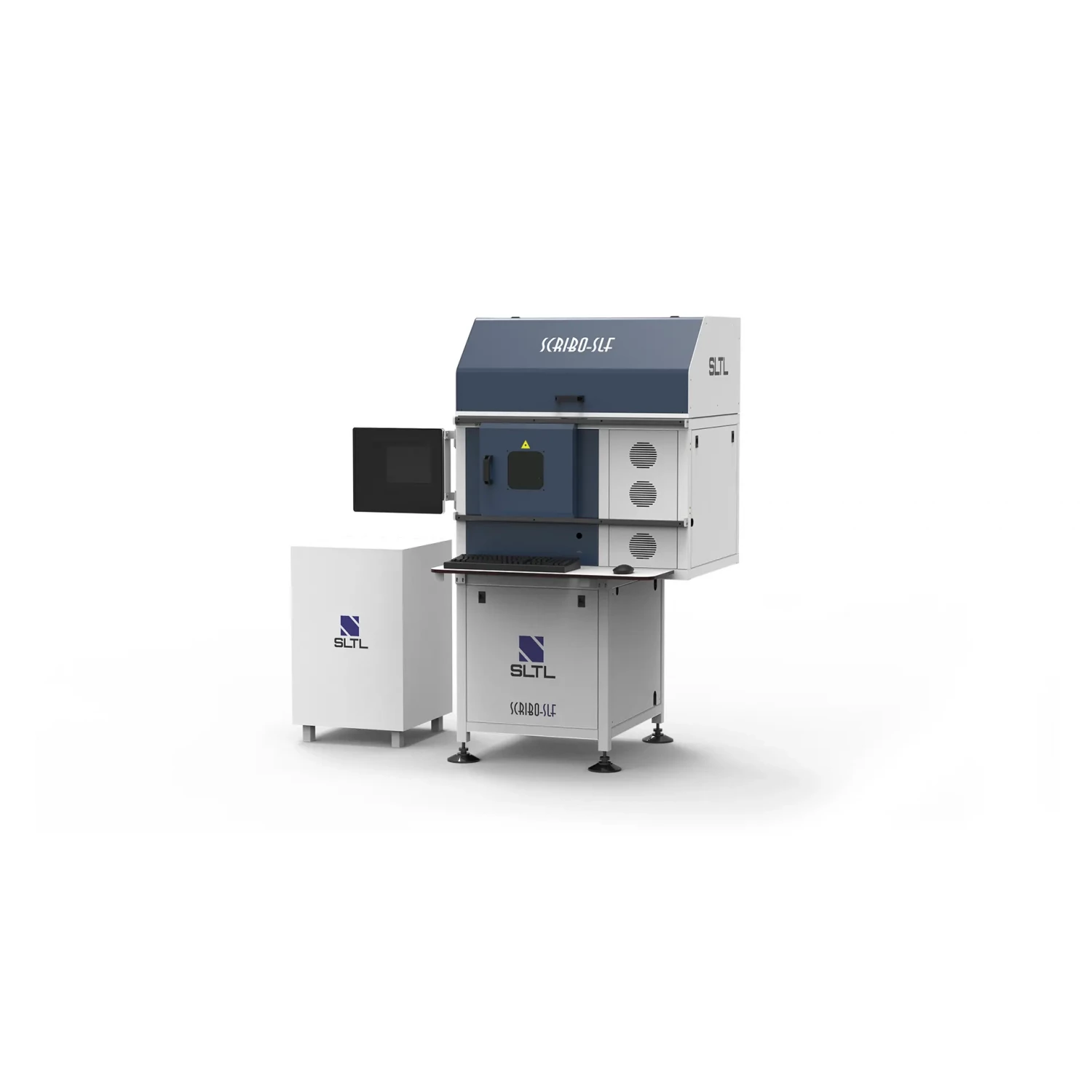

Model | SCRIBO-SLF |
---|---|
Laser | Fiber Laser |
Frame Design | Compact |
Laser Wavelength | 1064nm |
Transverse Mode | TEMoo |
Beam Quality | M² < 1.8 |
Average Power | 20 W / 30 W / 50 W |
Resolution | 1 micron |
Line width | < 30 micron |
Repeatability | ≤3 micron |
Max. Scribing Speed | 200* mm / sec |
Laser Repetition Freq. | 20 KHz to 80 KHz |
Axis | 175 x 175 mm / 312 x 312 mm |
Controller | PC Based |
Cooling | Air Cooled |
Dimension | 1300 x 1125 x 1450 mm |
Connected Lode | 230 V / 50 Hz, 0.46 kW |
Camera | In-Built |
Z Axis | Manual |
Software | Dedicated software for solar cell cutting application |
Applications
