Power: 20 – 50 Watts
Marking | Engraving | Coding | Traceability | Printing
Slimmest Design Model
Product Description

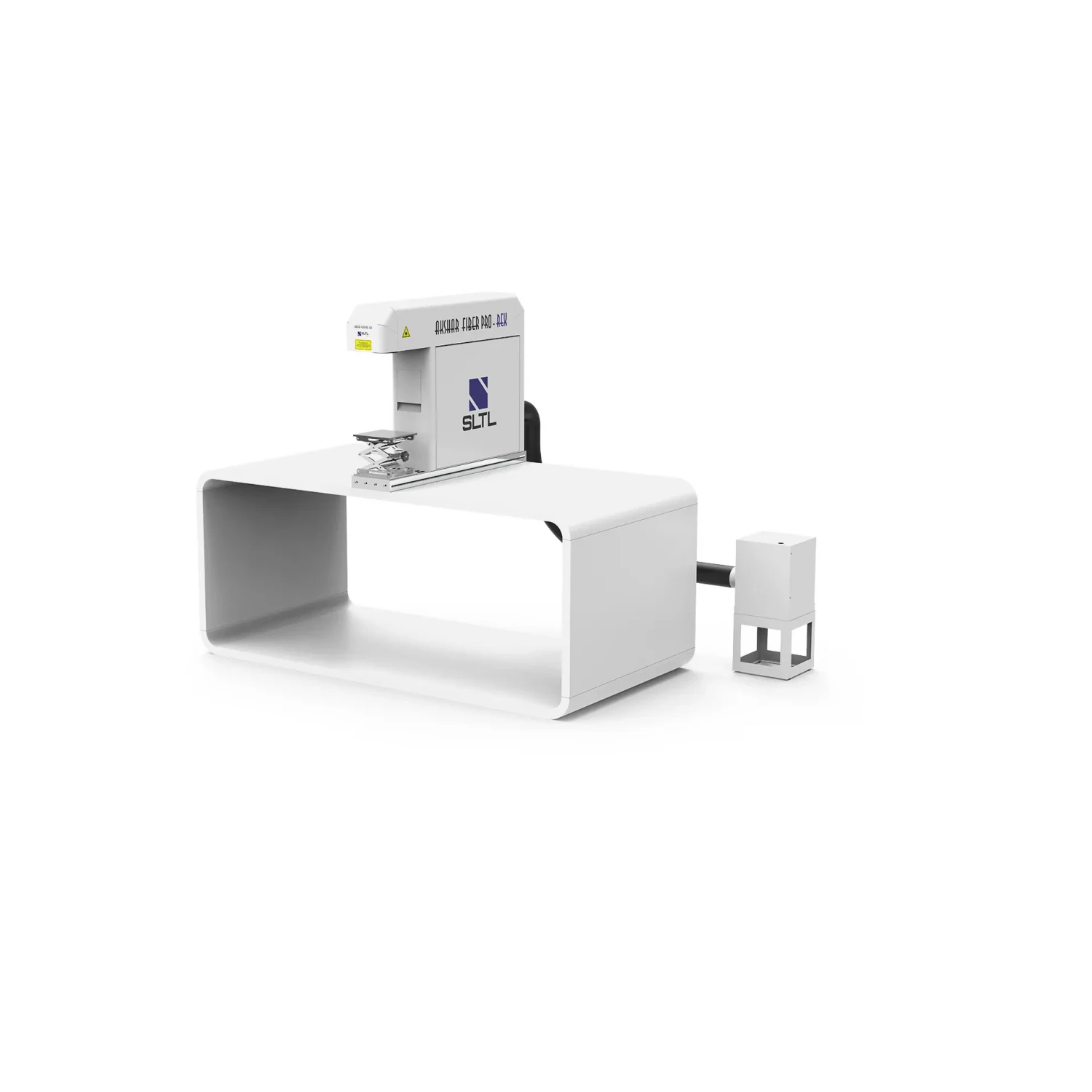

REX is a high-speed laser engraving and marking machine which can be used in various industries due to its compact size and promptness.
Features
Technical Specification
Unit | ||
---|---|---|
Laser | Multimode Pump Diode Fiber Laser | |
Laser Power | W | 20 |
Mode of Operation | Pulsed | |
Maximum Peak Power | kW | >7.5 |
Operating Temperature | Up to 40 °C | |
Lens | F-Theta | |
Wave Length | nm | 1060 ±10 |
Marking Area | mm | 150 x 150, 100 (Optional) |
Repeatability | Micron | ≤ 80 |
Working Area | mm | 150 x 150 |
Overall Size | mm | 850 x 180 x 610 |
Gross Weight | kg | 45 |
Travel | mm | 150 |
Maximum Load | kg | 5 |
Software | Mark Pro |
*Technical specifications are subject to change without prior notice
Accessories
1. Manual Actuator
2. Fume Extractor (With Filter)
3. Fume Extractor (Without Filter)
4. Foot Switch
5. Safety Goggles
6. UPS / Isolation Transformer
7. Full Enclosure
Applications
Industrial Laser
