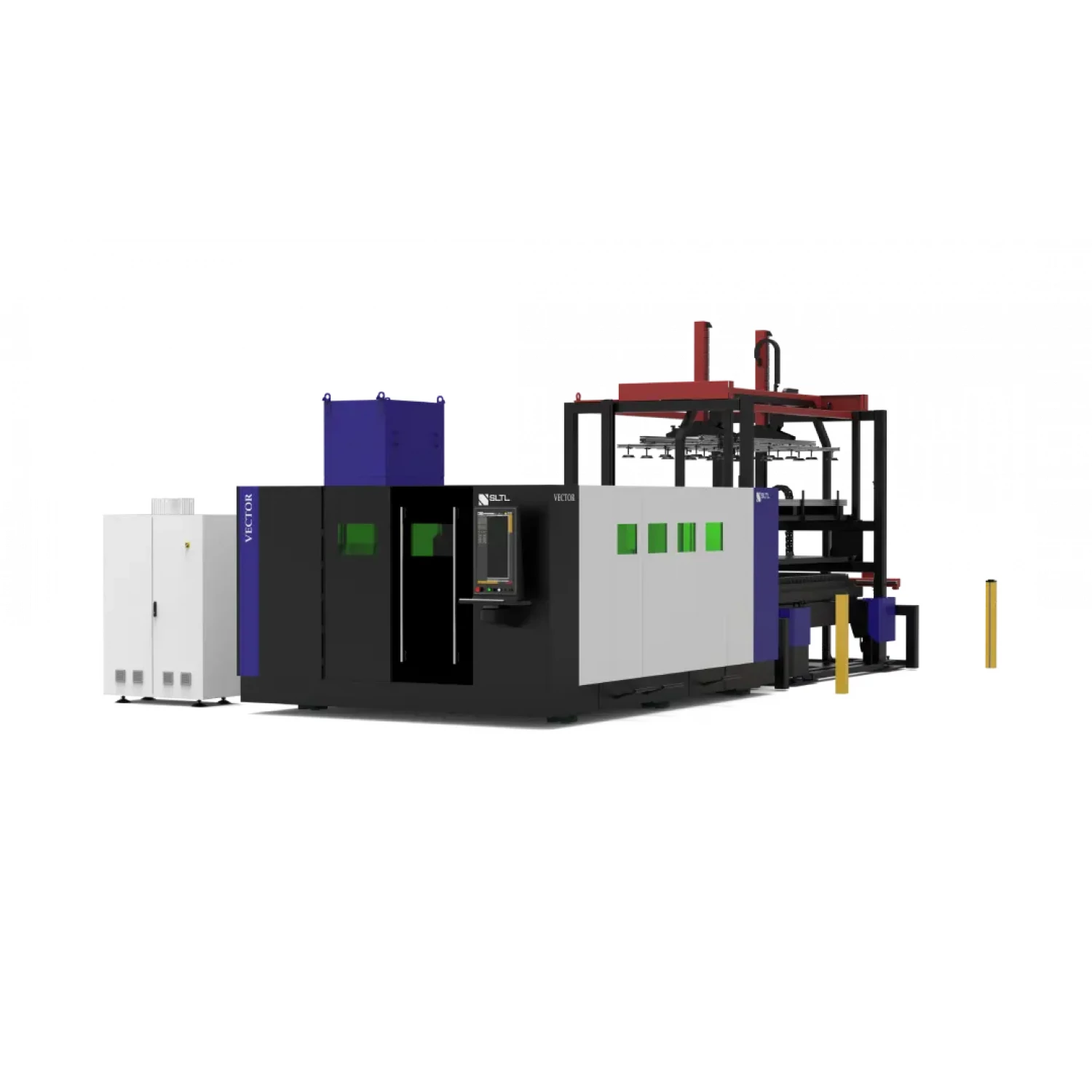

VECTOR
VECTOR Details
Power: 4 kW to 30 kW
Material: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Coated Sheet, Others.
Product Description
This machine allows designs to be cut out of a variety of substrates with vector cutting’s high accuracy. The machine also has an automatic nozzle cleaning and replacement feature.
Features
- Loading and Unloading Automation
- Head Crash Protection
- Auto Nozzle Changeover
- Class One Enclosure
- Multi Stage Piercing
- Anti-collision Mechanism
- Matchless Efficiency
- Dynamic Edge Control
- Safety at Its Best
Technical Specifications
| Laser Power | 4 kW | 6 kW | 8 kW | 10 kW | 12 kW | 15 kW | 20 kW | 30 kW |
|---|---|---|---|---|---|---|---|---|
| Mild Steel (MS) (O2) | 22 (7/8″) | 25 (1″) | 28 (9/8″) | 30 (19/16″) | 40 (26/16″) | 45 (7/4″) | 50 (31/16″) | 60 (19/8″) |
| Mild Steel (MS) (N2 / Air) | 6 (1/4″) | 8 (5/16″) | 10 (3/8″) | 12 (1/2″) | 12 (1/2″) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* |
| Stainless Steel (O2) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″)* | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) |
| Stainless Steel (N2 / Air) | 10 (3/8″) | 16 (5/8″) | 20 (13/16″) | 25 (1″) | 30 (19/16″) | 32 (5/4″) | 35 (11/8″)* | 40 (25/16″)* |
| Aluminium (Al) (N2) | 10 (3/8″) | 16 (5/8″) | 21 (13/16″) | 25 (1″) | 30 (19/16″) | 32 (5/4″) | 35 (11/8″)* | 40 (25/16″)* |
| Brass (Br) (N2) | 8 (5/16″) | 12 (1/2″) | 16 (5/8″) | 20 (13/16″) | 25 (1″) | 30 (19/16″) | 32 (5/4″)* | 35 (11/8″)* |
| Copper (Cu) (O2) | 6 (1/4″) | 8 (5/16″) | 10 (3/8″) | 12 (1/2″) | 16 (5/8″) | 18 (11/16″) | 20 (13/16″) | 22 (7/8″) |
| Galvanized Iron (Gl) (N2 / Air) # | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8″)* | 3 (1/8″) | 3 (1/8″) |
| Power Consumption** | 24 Kw | 32 kW | 40 kW | 48 kW | 56 kW | 68 kW | 85kW | 120kW |
| Working Area | 3015 | 4020 |
|---|---|---|
| X axis | 1550 (61″) | 2100 (82″) |
| Y axis | 3100 (122″) | 4100 (161″) |
| Z axis | 150 (6″) | 150 (6″) |
| Max. Acceleration | 3 G | 2 G |
| Simultaneous Speed | 210 m/min | 140 m/min |
| Position Accuracy | (±)0.050 mm/meter (0.002″) | (±)0.050 mm/meter (0.002″) |
| Repeatability | (±)0.020 mm/meter (0.001″) | (±)0.020 mm/meter (0.001″) |
| Work Piece Weight | 900 kg | 1650 kg |
* The quality of cut depends upon the attributes of metal, its surface properties and the conditions in which the cutting operation is done.
Metal with high thickness tend to have striation at the lower edges.
** The power consumption indicated in the table is measured in the machine’s peak performance. It includes the connected load of
laser source, controller, fume extractor and chiller.
# Galvanized Iron (GI) only comes up to 3mm thickness in market
Accessories:
- Calibration
- Vision Check
- Centering
- Auto Nozzle Changer
- Nozzle Cleaning
- Smart Camera
- Countersink
Applications
- Automobile and Automotive Industry
- uality finishing for Metal Cutting
- Gives the perfect shape for Utensils
- Agriculture & Farm Industry
